马尔车间测量显微镜 BL-143127

商家货号：
品牌：马尔

产品说明：
产品特征
Measuring microscope

*3-Axis CNC-controller with a servo motor and joystick
*Control the axis movement and gegulate the speed with the joystick
*Integrated color camera
*Power operated and also mechanical zoom lens
*LED ring light: 1 ring and 4 segments, individually switchable and dimmable
*LED transmitted light: dimmable
*Solid granite base
*Sturdy steel XY table, precision-mounted
*Quick and fine adjustment of axes
*Optical incremental measuring system for outstanding accuracy and reliability
*Laser pointer for position finding
Control and display unit with M3 software and touchscreen PC

*23" touchscreen with keyboard and mouse
*The operating system is Windows 8 Pro, so further software can be installed
*Operation via the Multi-Touch screen or with a mouse/keyboard
*Large video screen
*Reference/actual evaluation with tolerances
*Record output with company logo
*Graphical display with dimensioning
*Automatic edge detection, even on low-contrast parts
*Stitching
*Statistics

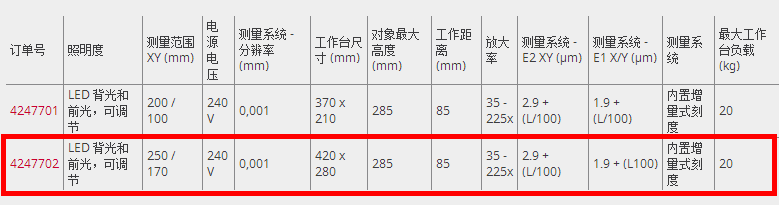

技术数据
